Topton C246 NAS ITX Motherboard 8*SATA3.0 4*I226 2.5G 2*M.2 NVME 2*DDR4 PCIE 16X NAS Board LGA1151 Support 8th/9th Core Xeon CPU

Topton C246 NAS ITX Motherboard 8SATA3.0 4I226 2.5G 2M.2 NVME 2DDR4 PCIE 16X NAS Board LGA1151 Support 8th/9th Core Xeon CPU

$1,056.00

Bundle:

Color:

Only 3 left! .. people are viewing this, and 3 recently purchased it

Order in the next to get it by

Great reasons to buy from us:

30-Day Money-Back Guarantee
Changed your mind? Ordered the wrong thing? Simply return your item for a prompt exchange or refund.
Free Shipping Over $70
Enjoy free shipping when you spend over $70
Secure Checkout
SSL Protected Checkout & Strongly Secure for Payments
Fast Handling
Every order is a priority to us. We handle your order quickly to ensure you get your product fast.

SPECIFICATIONS

Battery Included: no

Brand Name: NONE

Demo Board Type: Intel X86

High-concerned chemical: none

Model Number: N33

Origin: Mainland China

Typical Application Fields: Internet of Things (IoT)

Notice: Xeon E-2124 has no Intel integrated graphics, please connect dedicated graphic card for display. Other CPUs have Intel integrated graphics.

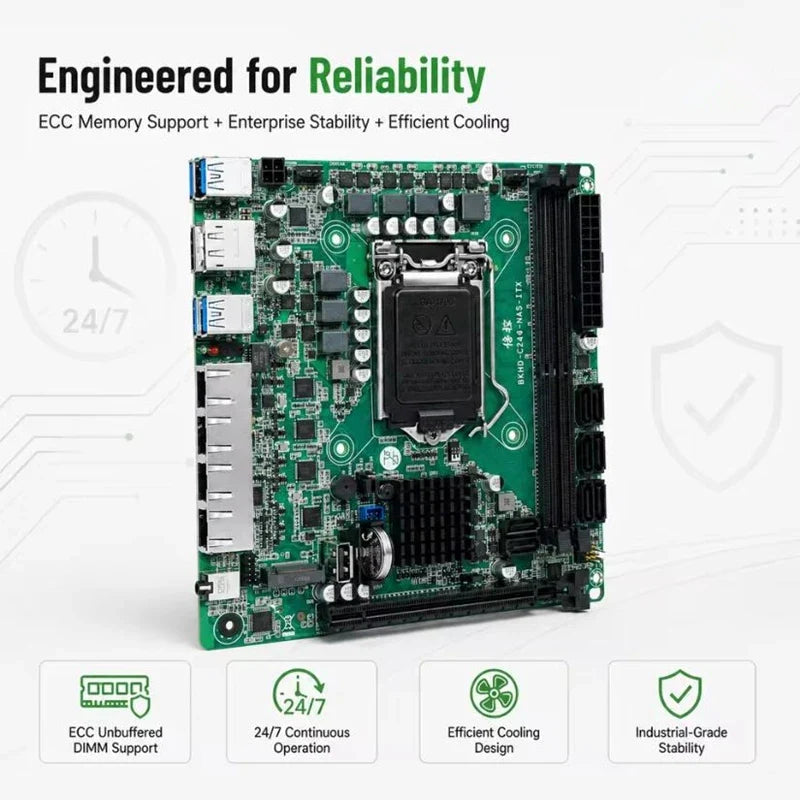

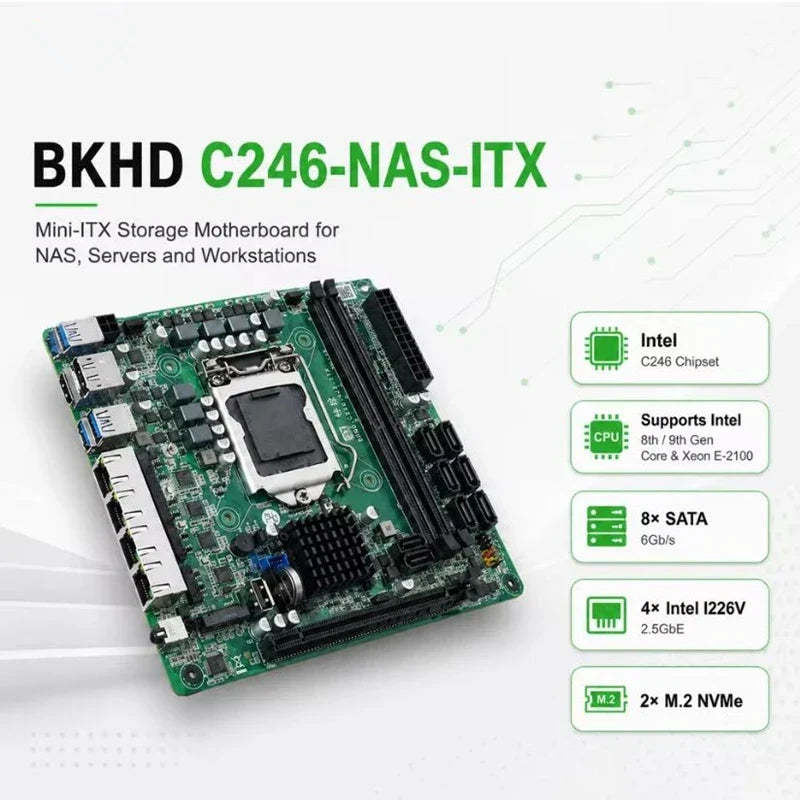

C246 NAS Mini-ITX Motherboard

The C246-NAS-ITX motherboard is designed for NAS storage servers, home labs, small business storage, and professional workstation applications.
With 8 native SATA ports, 2 M.2 NVMe slots, 4 Intel 2.5GbE LAN ports, and ECC memory support, it provides a powerful and reliable platform for building a high-capacity storage server.

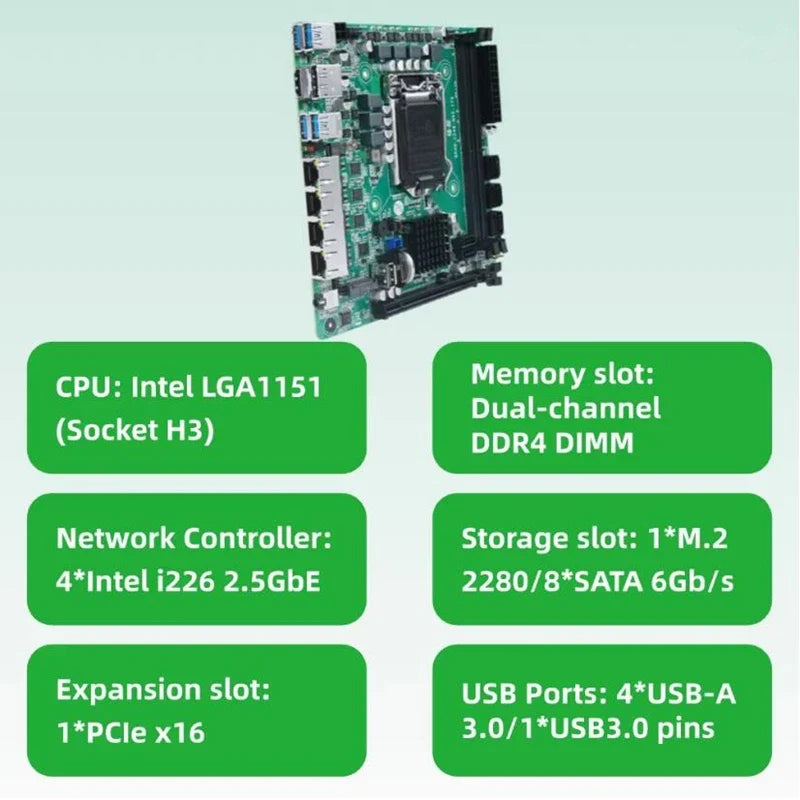

Key Features

Chipset: Intel® C246

Processor Support: Intel® Xeon® E-2100 E-2200 Series, Core™ 8-9th Gen, Pentium® (FCLGA1151)
Memory: 2xDDR4 Non-ECC or ECC Unbuffered DIMM, up to 64GB (2666 MT/s), support ordinary desktop memory and pure ECC memory, DO NOT support server memory
Storage: 8× SATA 6Gb/s, 2× M.2 Key-M 2280 (PCIe 3.0)

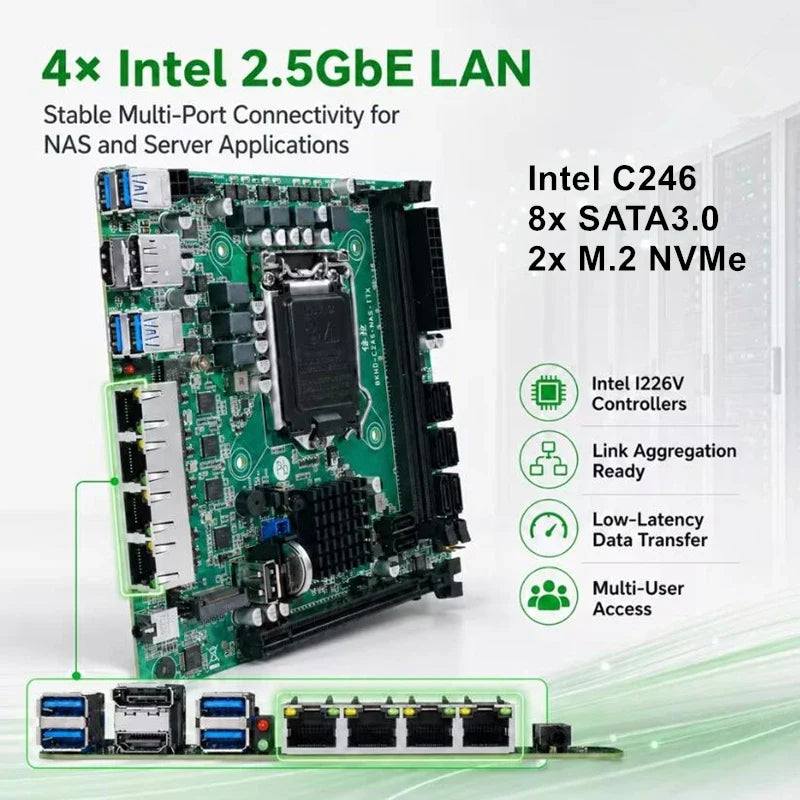

Networking: 4× 2.5GbE LAN (Intel I226V)
Display: 1× HDMI, 1× DP (depends on CPU integrated graphics)
USB Ports: 4× USB-A 3.0 (rear), 1× USB-A 2.0 (onboard), F_USB expansion headers
Audio: Realtek ALC897, 1× Line-Out jack

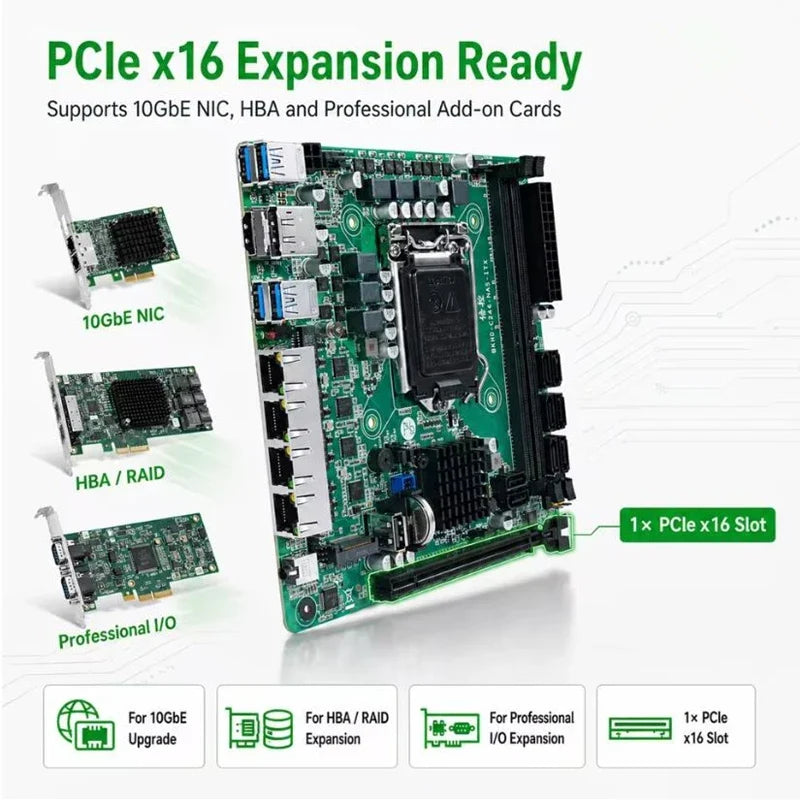

Expansion: 1× PCIe x16 (Gen3) for 10G NIC, HBA card, RAID card or GPU card etc
Cooling: 1× CPU_FAN, 2× SYS_FAN
Power: ATX 24-pin + 4-pin
Form Factor: Mini-ITX 170 × 170 mm
Environment: Operating -10–60℃; Humidity 10–90% RH (non-condensing)

Typical Applications

NAS Storage Server
Home Lab / DIY Server
RAID Storage System
Backup Server
Media Server
Small Business Storage Solution
Professional Workstation
